REINFORCED, CAPPED BAMBOO-PVC COMPOSITE
MORE ABOUT APEX PLUS
APEX PLUS BENEFITS
INCREASED SPAN
MORE STABLE
NATURAL AESTHETIC
SLIP RESISTANT
resistance properties
LOW-MAINTENANCE
optimal longevity
PROTECTIVE CAP
DECAY RESISTANT
moisture, & weather
ECO-FRIENDLY
prevents deforestation
Apex Plus Profile Types

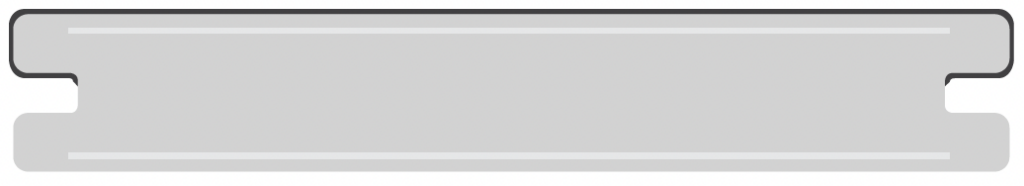

Apex PLUS Grooved board
Profile Cross Sections
Dimensions: 140 x 21 mm
Weight: 2.5 kg/m
Joist: *550 mm centre to centre
Profile Cross Sections
Dimensions: 140 x 24 mm
Weight: 2.7 kg/m
Joist: *550 mm centre to centre
Dimensions: 190 x 24 mm
Weight: 3.4 kg/m
Joist: *550 mm centre to centre
*Please refer to the technical documents for more information on spans and loads.
Apex PLUS Square edge board
Profile Cross Sections
Dimensions: 140 x 24 mm
Weight: 3.0 kg/m
Joist: *550 mm centre to centre
Dimensions: 190 x 24 mm
Weight: 3.9 kg/m
Joist: *550 mm centre to centre
*Please refer to the technical documents for more information on spans and loads.
LIGHTWEIGHT, CAPPED BAMBOO-PVC COMPOSITE DECKING
Apex offers you a resilient and natural looking composite. Its ultra-lightweight bamboo foamed-PVC core makes for easy installation and workability. Apex carries a slip resistance ratings and exceptional low maintenance, requiring only basic cleaning for optimal longevity. Its protective cap is made from a resilient acrylic polymer coating for fade, scratch, and stain resistance. Apex provides long-term decay and weather protection by resisting insects, moisture, and the elements. Apex is an eco-friendly alternative to timber that prevents deforestation and premature deck replacement and uses solar power within the manufacturing process.
ENJOY A MORE BEAUTIFUL OUTDOORS
Take home the Benefits
NATURAL AESTHETIC
Advanced technology for more natural looking composite
LIGHTWEIGHT
Ultra-lightweight
bamboo-PVC core
FIRE RESISTANT
Fire Resistance
Tested
SLIP RESISTANT
Reliable slip
resistance properties
LOW-MAINTENANCE
Only basic care required for
optimal longevity
PROTECTIVE CAP
Fade, scratch, & stain resistant capping technology
DECAY RESISTANT
Resists insects, moisture,
& weather
ECO-FRIENDLY
Long-lasting & prevents deforestation
APEX PROFILE TYPES

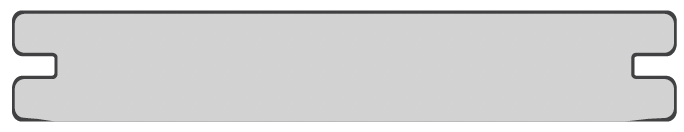

Apex grooved board
Profile Cross Sections
Dimensions: 140 x 24 mm
Weight: 2.5 kg/m
Joist: *300 mm centre to centre
Dimensions: 190 x 24 mm
Weight: 3.4 kg/m
Joist: *350 mm centre to centre
*Please refer to the technical documents for more information on spans and loads.

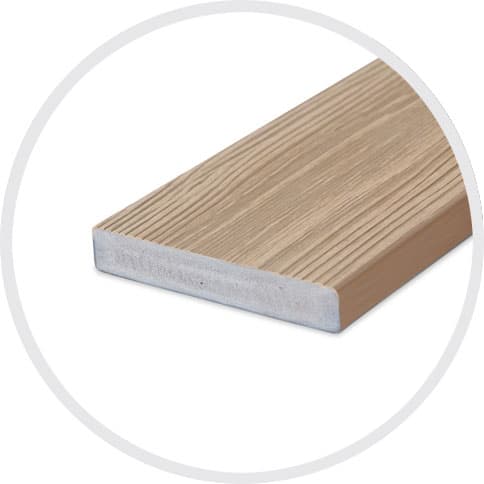

Apex square edge board
Profile Cross Sections
Dimensions: 140 x 24 mm
Weight: 2.6 kg/m
Joist: *300 mm centre to centre
Dimensions: 190 x 24 mm
Weight: 3.5 kg/m
Joist: *350 mm centre to centre
*Please refer to the technical documents for more information on spans and loads.
Apex starter board
Profile Cross Sections
Dimensions: 140 x 24 mm
Weight: 2.5 kg/m
Joist: *300 mm centre to centre
*Please refer to the technical documents for more information on spans and loads.
Apex fascia board
Apex fascia boards are non-load bearing profiles that help
to add a neat finish to deck sides or areas where trim is needed.
They are fastened using colour matching HULK top fixing
composite trim screws.
Profile Cross Sections
Dimensions: 71 x 11 mm
Weight: 0.7 kg/m
Span: *300 mm centre to centre
Dimensions: 150 x 12 mm
Weight: 1.4 kg/m
Span: *300 mm centre to centre
Dimensions: 184 x 14 mm
Weight: 2.0 kg/m
Span: *300 mm centre to centre
Dimensions: 285 x 16 mm
Weight: 3.5 kg/m
Span: *300 mm centre to centre
*Please refer to the technical documents for more information on spans and loads.
Apex composite joist
Apex foamed composite joists are a non-load bearing, cost-effective option for use over
existing slabs such as screed, or tiled flooring, paving, and patios. Compared to standard
deck installations, they are quick to install, requiring no posts or any other supporting
structure.
Profile Cross Sections
Dimensions: 40 x 30 mm
Weight: 1.6 kg/m
APEX AND APEX PLUS DUAL TONE COLOUR GUIDE
The dual tone range of Apex and Apex PLUS adds an extra layer of colour to each board to enhance the natural look of your composite
project. The variance in shades within a single composite profile beautifully showcases the colour tones found in timber making your
composite all the more striking. Dual tone colours are ideal for mid-to-large-scale composite decks and projects or other areas that are
all about that natural look.
Please visit your region-specific site to see which colours are available in your country.
Visit your region-specific site to see which profiles, colours, and board sizes are available in your country.
Disclaimer: Span data provided herein is indicative based on specific test load conditions (refer to your product Technical Data Sheet). Dimensional and mass data provided herein is indicative based on typical production and may vary with manufacture and material tolerance. Before installing any Eva-Last product, ensure that the application is rational and complies with the local regulations and building codes. Wherever necessary, consult a suitably qualified professional.
