Redefining Composite

Pioneer redefines what composite decking is. For centuries, we’ve looked to the past, to the era when mighty timbers shaped our world and craftsmanship was bound by the tools of its time. But innovation has evolved. Today, human ingenuity has achieved what once seemed impossible. Engineered with next-generation technology, Pioneer composite captures the soul and beauty of hardwoods in every grain and hue. It delivers the ultimate timeless look of natural timber for decades to come, without the negative impact on our planet. 
Pioneer offers a reinforced core and a high-resolution digital print surface finish with a clear outer wear layer which provides extra protection for the colour and resiliency of the board.

TAKE HOME THE BENEFITS

REALISTIC AESTHETIC
Advanced digital scan replication of rare wood for an exceptionally natural look
ECO-FRIENDLY
Prevents deforestation by capturing the beauty of endangered timbers without felling
ATTAINABLE LUXURY
The look of exquisite exotic hardwood in convenient composite
INCREASED SPAN
Reinforced for improved strength & span capability
MORE STABLE
Less movement from expansion & contraction
WEAR LAYER
Wear layer offers protection against stains, scratches and fading
DECAY RESISTANT
Long-lasting & resists insects, moisture, & weather
LOW MAINTENANCE
Enhanced surface for easy cleaning & optimal longevity

PIONEER PROFILE TYPES

Pioneer reinforced bamboo foamed-PVC composite can be used as stunning outdoor decking or as open joint cladding in wall applications. Decking profiles are available in a 140 mm width (grooved and square edge), and a 145 mm width (grooved only). Fascia boards are available in a 150 mm or 184 mm width for use as trim or other accents. All boards can be cut using standard tools. CHAIN collated clips are designed for use with the grooved edges, while HULK colour matching top fixing screws are made for use with non-grooved edges and fascia boards.

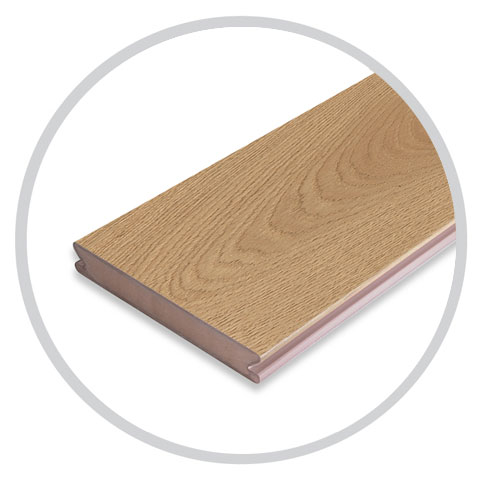

Pioneer grooved board

The Pioneer single sided grooved board is reinforced and offers a flawless, fastener-free final look thanks to grooves along its edges which are designed for streamlined installation using Chain collated clips.

Profile Cross Sections

Dimensions: 145 x 21 mm (5.5” x 1.O”)
Weight: 2.7 kg/m
Joist: *550 mm centre to centre

Dimensions: 190 x 21 mm (7.5” x 0.8”)
Weight: 2.7 kg/m
Joist: *550 mm centre to centre

*Please refer to the technical documents for more information on spans and loads.

Disclaimer: Span data provided herein is indicative based on specific test load conditions (refer to your product Technical Data Sheet). Dimensional and mass data provided herein is indicative based on typical production and may vary with manufacture and material tolerance. Before installing any Eva-Last product, ensure that the application is rational and complies with the local regulations and building codes. Wherever necessary, consult a suitably qualified professional.

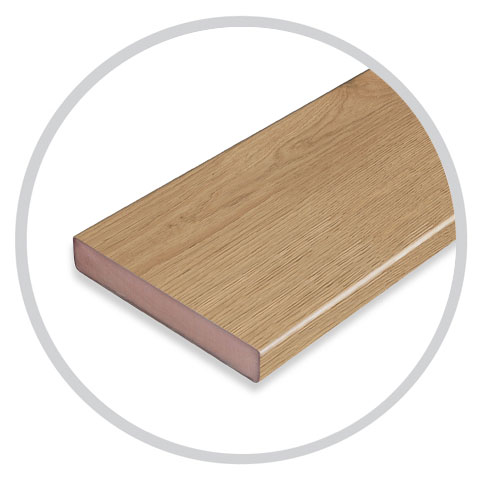

Pioneer square edge board

The Pioneer single sided square edge board is reinforced and is designed for use as decking or for creative vertical installations, like cladding. Install using HULK colour matching top fixing screws.

Profile Cross Sections

Dimensions: 145 x 21 mm (5.5” x 1.O”)
Weight: 2.8 kg/m
Joist: *550 mm centre to centre

*Please refer to the technical documents for more information on spans and loads.

Disclaimer: Span data provided herein is indicative based on specific test load conditions (refer to your product Technical Data Sheet). Dimensional and mass data provided herein is indicative based on typical production and may vary with manufacture and material tolerance. Before installing any Eva-Last product, ensure that the application is rational and complies with the local regulations and building codes. Wherever necessary, consult a suitably qualified professional.

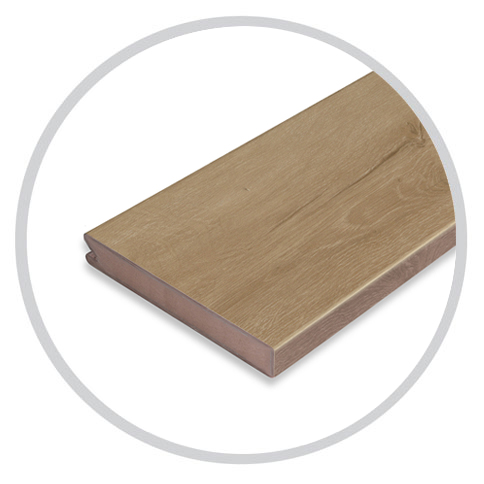

Pioneer starter board

The Pioneer wide single sided starter board is lighter weight and is ideal for creating a picture frame effect for decks and for use on stairs edges. It simplifies installation by accommodating grooved boards while offering a solid square outside edge. Install using CHAIN collated clips on the grooved edge and HULK colour matching top fixing screws on the square edge.

Profile Cross Sections

Dimensions: 145 x 21 mm (5.5” x 1.O”)
Weight: 2.7 kg/m
Joist: *550 mm centre to centre

Dimensions: 190 x 21 mm (5.5” x 1.O”)
Weight: 2.7 kg/m
Joist: *550 mm centre to centre

*Please refer to the technical documents for more information on spans and loads.

Disclaimer: Span data provided herein is indicative based on specific test load conditions (refer to your product Technical Data Sheet). Dimensional and mass data provided herein is indicative based on typical production and may vary with manufacture and material tolerance. Before installing any Eva-Last product, ensure that the application is rational and complies with the local regulations and building codes. Wherever necessary, consult a suitably qualified professional.

Pioneer fascia board

Pioneer single sided fascia boards are designed for use in vertical applications as decking trim or cladding. They are non-load bearing profiles that add a neat finish to deck sides or other areas and are fastened using colour matching HULK top fixing composite trim screws.

Profile Cross Sections

Dimensions: 150 x 12 mm (6” x 0.5”)
Weight: 1.5 kg/m
Joist: *300 mm centre to centre. *Based on non-load bearing applications only

Dimensions: 184 x 12 mm (7.2” x 0.5”)
Weight: 1.7 kg/m
Joist: *300 mm centre to centre. *Based on non-load bearing applications only

*Please refer to the technical documents for more information on spans and loads.

Disclaimer: Span data provided herein is indicative based on specific test load conditions (refer to your product Technical Data Sheet). Dimensional and mass data provided herein is indicative based on typical production and may vary with manufacture and material tolerance. Before installing any Eva-Last product, ensure that the application is rational and complies with the local regulations and building codes. Wherever necessary, consult a suitably qualified professional.

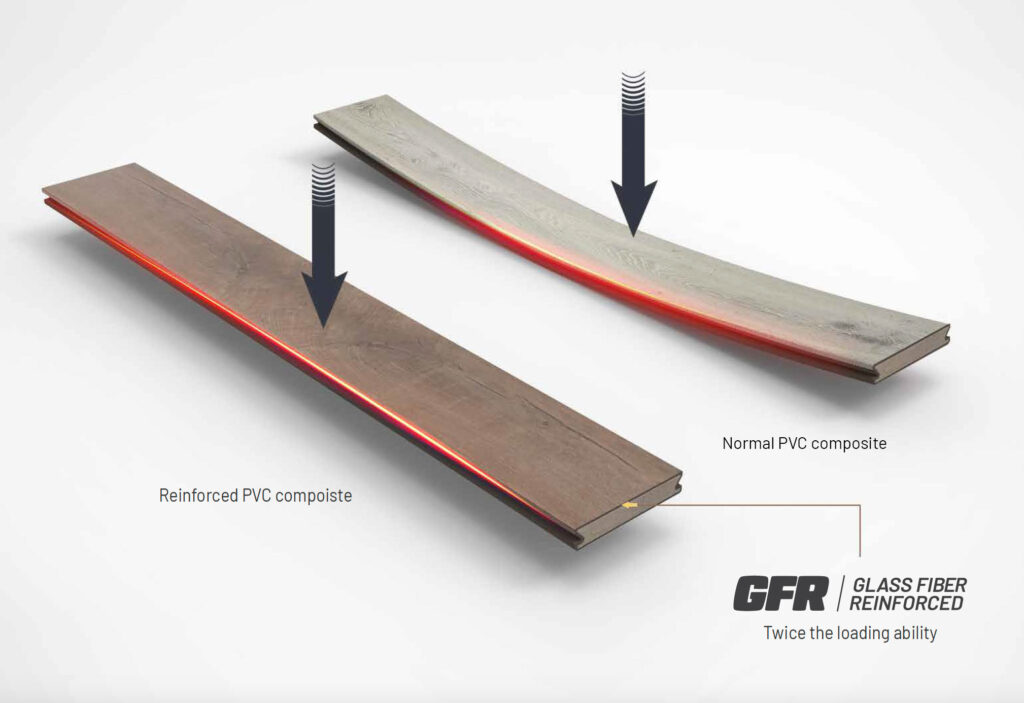

Glass Fibre Reinforcement Advantages

Pioneer has a glass fiber-reinforced core to create a more robust composite profile that can span further than competing PVC composites, giving you the perfect combination of beauty, strength, and durability.

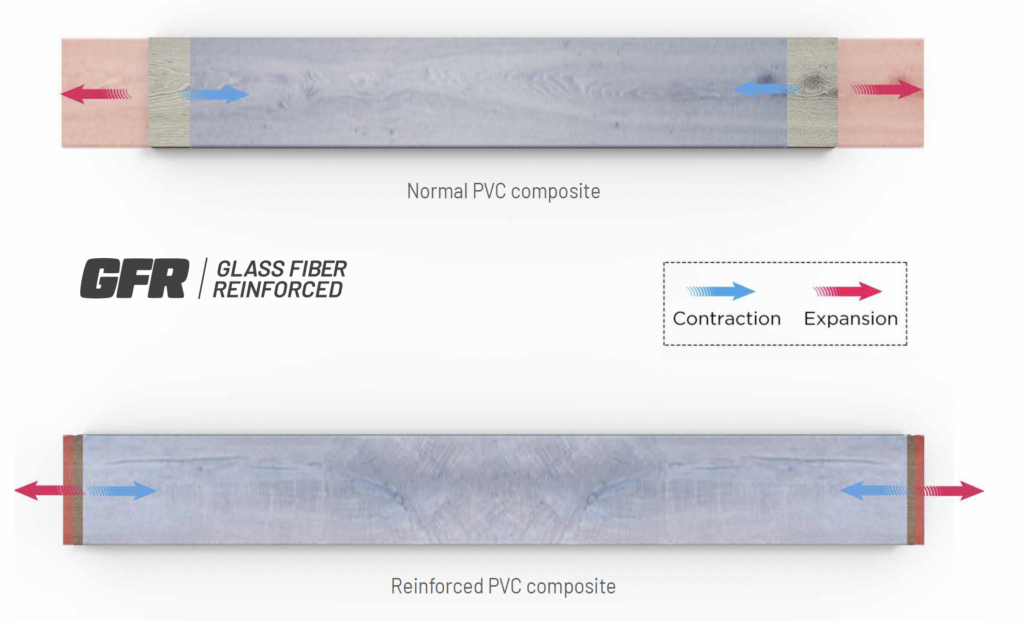

The Pioneer reinforced core works as a stabilising sheet and reduces expansion and contraction drastically when compared to other standard PVC composite decking products.

REDUCED EXPANSION AND CONTRACTION

Visit your region-specific site to see which profiles, colours, and board sizes are available in your country.
DOWNLOAD PIONEER BROCHURE
COMPARE DECKING BRANDS

Disclaimer: Span data provided herein is indicative based on specific test load conditions (refer to your product Technical Data Sheet). Dimensional and mass data provided herein is indicative based on typical production and may vary with manufacture and material tolerance. Before installing any Eva-Last product, ensure that the application is rational and complies with the local regulations and building codes. Wherever necessary, consult a suitably qualified professional.
