HYBRID ALUMINIUM BAMBOO COMPOSITE BEAM
Lifespan hybrid aluminium composite beams give you the creative freedom to build more memorable outdoor architectural designs. These multipurpose beams have the functionality, resiliency, and beauty to make your project remarkable. Whether you choose to use Lifespan beams for pergolas, entryways, dramatic screening, or your own creative architectural vision, revel in the feeling of building something truly innovative.
HIGH PERFORMANCE FOR HIGH EXPECTATIONS
Lifespan beams add style and functionality in a diverse range of applications. Enjoy the shade and privacy of a pergola or screen, or enhance the appeal of your home exterior with beams that give the look of wood without the maintenance hassles. The versatility of Lifespan decorative architectural beams is matched only by their beauty.
PERGOLAS
PRIVACY SCREENS
CLADDING & SOFFITS
DECORATIVE ARCHITECTURE
TAKE HOME THE BENEFITS
DESIGN VERSATILITY
Architectural beams offer a diverse range of aesthetic applications
LIGHTWEIGHT DESIGN
Specialised aluminium core for easier installation at height
LOW-MAINTENANCE
The look of timber beams
without
the upkeep
INCREASED SPAN
Reinforced bamboo composite
beam
with built-in aluminium core
DECAY & WEATHER RESISTANT
Resists biodegradation, corrosion,
insects,
& harsh weather
FADE RESISTANT
Built-in UV protection
for
beautiful durability
REINFORCED COMPOSITE
Lifespan architectural beams offer design versatility and increased span thanks to their specialised aluminium core that makes for
easier installation at height. The outer coating of low-maintenance bamboo composite resists biodegradation, corrosion, insects, and
harsh weather, and offers built-in UV protection for beautiful durability. Enjoy the look of timber beams without the upkeep.
Aluminium core
Engineered flexible adhesive
Outer protective composite coating
(Eva-tech surface technology)
INCREASED SPAN
Lifespan architectural beams offer the span capability of much heavier, solid beams thanks to their built-in aluminium core. This core
significantly enhances the dimensional and flexural stability of the beam, while the Eva-tech bamboo composite coating provides a
realistic timber aesthetic, as well as resistance to severe climatic and biodeterioration conditions.
PROFILE SIZE OPTIONS
Lifespan hybrid aluminium composite beams are available in a range of sizes and shapes to suit your outdoor project design. Lifespan has been designed to meet industrial norms. However, building codes and standards may differ between jurisdictions or countries. Be sure to consult your local building codes
before installing Lifespan composite beams.
Lifespan Decorative Beam 50 x 30 mm
The 50 x 30 mm Lifespan decorative profile enhances your outdoor space with the look of a traditional timber baluster. This compact batten sized profile is a popular choice for creating durable screens, gates, pergolas and other low-maintenance outdoor architectural features.
Hollow aluminium composite beam
Dimensions: 50 x 30 mm
Standard lengths: 5.8 m
Weight: 0.8 kg/m
Standard lengths: 5.8 m
Weight: 0.8 kg/m
End caps available
Colour matched end caps create a finished look on beam ends.
Lifespan Decorative Beam 100 x 30 mm
The 100 x 30 mm Lifespan decorative beam is the most popular size in the Lifespan range, ideal for creating striking and durable privacy screens, gates, or other attractive architectural features for your outside space. Enjoy the look of timber beams without the upkeep hassles or environmental toll.
Hollow aluminium composite beam
Dimensions: 100 x 30 mm
Standard lengths: 5.8 m
Weight: 1.3 kg/m
Standard lengths: 5.8 m
Weight: 1.3 kg/m
End caps available
Colour matched end caps create a finished look on beam ends.
Lifespan Decorative Beam 150 x 35 mm
The 150 x 35 mm Lifespan decorative beam adds a sense of drama to your outdoor space with its uniquely broad but still slim dimensions. Create the perfect privacy screen or embrace the aesthetic of composite beams as a pergola or other outdoor decorative features.
Hollow aluminium composite beam
Dimensions: 150 x 35 mm
Standard lengths: 5.8 m
Weight: 2.6 kg/m
Standard lengths: 5.8 m
Weight: 2.6 kg/m
End caps available
Colour matched end caps create a finished look on beam ends.
Lifespan Decorative Beam 150 x 50 mm
The 150 x 50 mm Lifespan decorative beam is a larger
rectangular profile in the Lifespan range and creates a
stately aesthetic for your outdoor space, ideal for use as an oversized pergola beam, privacy screen, or in conjunction with smaller Lifespan beams within the system.
Hollow aluminium composite beam
Dimensions: 150 x 50 mm
Standard lengths: 5.8 m
Weight: 3.3 kg/m
Standard lengths: 5.8 m
Weight: 3.3 kg/m
End caps available
Colour matched end caps create a finished look on beam ends.
Lifespan Decorative Post 97 x 97 mm
The 97 x 97 mm Lifespan post profile is a low-maintenance,
high performing hybrid aluminium composite post. It is most often used as durable vertical railing post, but can
also serve to create other show-stopping outdoor accents,
such as pergolas and other architectural design features.
Hollow aluminium composite post
Dimensions: 97 x 97 mm
Standard lengths: 5.8 m
Weight: 4.6 kg/m
Standard lengths: 5.8 m
Weight: 4.6 kg/m
End caps available
Post caps and skirts create a finished look for posts.
Post caps and skirts create a finished look for posts.
Lifespan Decorative Post 150 x 150 mm
The 150 x 150 mm Lifespan post profile is a substantial beam
that brings the essence of large wooden posts without the
maintenance, environmental toll, or moisture-related issues of timber. It is most often used as uprights for pergolas or other one-of-a-kind architectural details.
Hollow aluminium composite post
Dimensions: 150 x 150 mm
Standard lengths: 5.8 m
Weight: 8.1 kg/m
Standard lengths: 5.8 m
Weight: 8.1 kg/m
End caps available
Post caps and skirts create a finished look for posts.
Post caps and skirts create a finished look for posts.
Lifespan profiles are available in various lengths. Find out which lengths are available in your country.
LIFESPAN ACCESSORIES
LIFESPAN IN EVA-TECH COLOUR TECHNOLOGY
A NEW GENERATION OF CONCEALED CONNECTORS
Lifespans new generation connectors have been designed with the utmost respect to typical load and durability. This unique range of connectors enables quick and easy installation of Lifespan posts and beams with the added advantage of being concealed ensuring fastening is discreet, for a seamless finish to any project.
BENEFITS OF THE NEW GENERATION LIFESPAN CONCEALED CONNECTORS
1. Designed with respect to typical loads and corrosion requirements
2. Quick & simple installation process
3. Concealed brackets for aesthetic finishes
2. Quick & simple installation process
3. Concealed brackets for aesthetic finishes

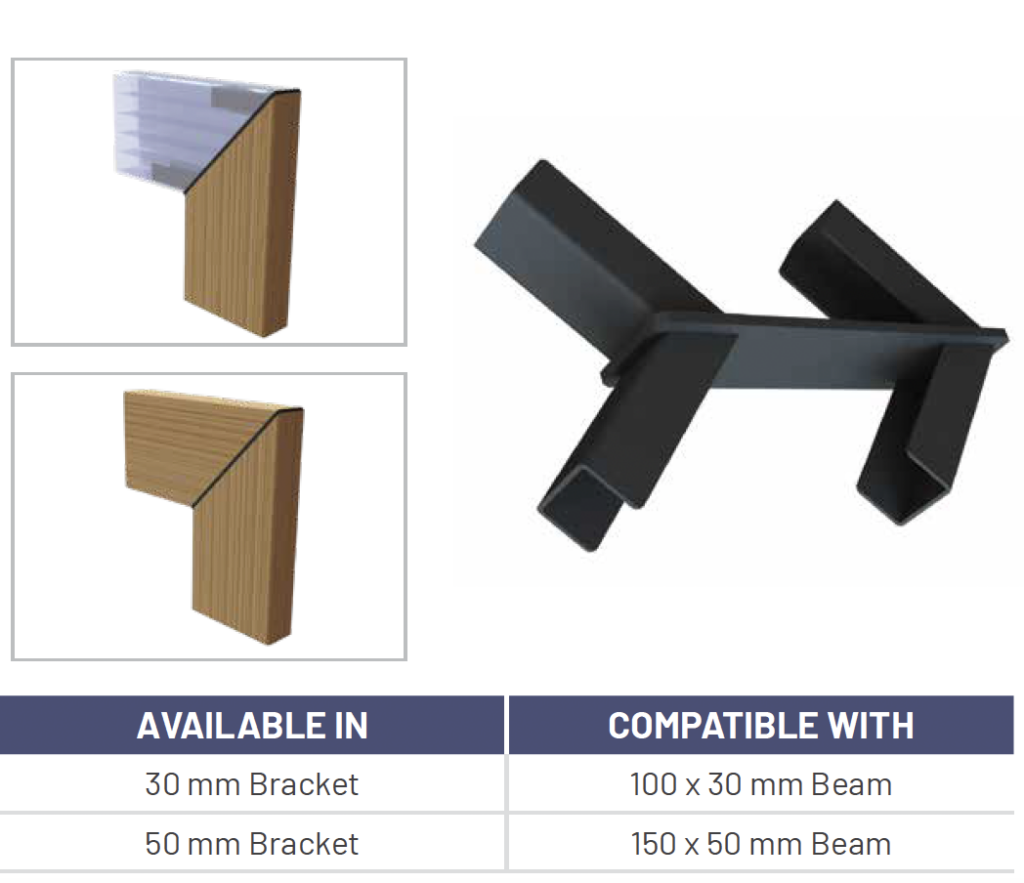

CONCEALED BEAM SPLICE ASSEMBLY
Short Mitre 90-degree
CONCEALED BEAM SPLICE ASSEMBLY
Short Mitre 90-degree
A 90-degree Mitre Splice profile creates a clean right corner for your outdoor installation by providing a simple yet secure perpendicular attachment between two Lifespan beams along their short or long edge. After cutting your Lifespan beams to a 45-degree angle, slip one side of the Splice bracket into the hollow chambers of the first beam and fasten the bracket to the beam with a screw on each wide face of the beam. Next, slide your second Lifespan beam over the remaining side of the bracket and repeat the fastening steps to establish a reliable miter joint for your project. Each Splice pack includes two brackets and eight dark brown fasteners.
To find out which Lifespan connectors are available in your region, please visit local Eva-Last website.
CONCEALED BEAM SPLICE ASSEMBLY
Straight Splice
The Concealed Straight Splice gives your Lifespan installation a discreet yet reliable connection between two Lifespan beams running in the same direction. Join your two Lifespan beams by inserting one side of the Straight Splice bracket into the hollow chambers of the first beam. Secure the beam to the bracket by fastening two screws on the top face of the beam and two screws on the bottom face. Next, slide your second beam onto the remaining side of the bracket and repeat the fastening steps to create a dependable hold between the beams. Each Concealed Straight Splice kit includes one bracket and eight dark brown screws.
CONCEALED CROSS CONNECTION PLATE
The Lifespan concealed cross connection plate allows you to
enjoy a fastener-free finished look for your Lifespan pergola by offering a secure, hidden attachment between your Lifespan crossbeams. The colour-matched powder coated and galvanised steel plate is first attached to the bottom of the pergola crossbeams and then to the top of your Lifespan support beam, allowing the crossbeams to sit atop the support beam while keeping the connection plate out of sight.
CONCEALED CLIP-IN BRACKET ASSEMBLY
The Lifespan concealed clip-in bracket kit makes installing
Lifespan beams vertically or horizontally simpler and gives your outdoor project a more polished and professional final look. The concealed clip-in bracket kit includes a powder coated and galvanised wall mount which can be attached to a wall or post
where the Lifespan beam will eventually be installed. The kit’s metal beam insert attaches with the fasteners included in the kit and is designed to fit within the hollow chambers of the Lifespan beam for a strong attachment.
CONCEALED POST MOUNT
The Lifespan concealed post mount kit establishes a secure and solid attachment between Lifespan posts and the decking or solid surface beneath them while creating an uncluttered final look for your outdoor project. The bracket fits discretely within the hollow
chambers of a standard Lifespan post to avoid visual detection while providing a reliable long-term hold. Each kit includes a powder coated and galvanised steel post mount, plus all the necessary
fasteners to attach the post for straightforward installation (does not include substrate fasteners). Simply place the post mount where you would like your post, slip the Lifespan post over the brackets, and attach with the fasteners provided.
LIFESPAN U-BRACKET
The Lifespan U-bracket builds a stable and dependable
connection between your Lifespan beam and substrate. First, fasten the U-bracket to your substrate. Then carefully pre-drill holes in your Lifespan beam to align with the holes in the bracket. Next, slide the beam into the bracket. Slip the threaded rod through the aligned holes in the bracket and beam. Finally, secure the bracket by installing and tightening the provided washers and
nuts to both ends of the rod. The Lifespan U-bracket is available in the complete Lifespan colour palette.
CONCEALED RAFTER BRACKETS
Lifespan concealed rafter brackets offer a discreet yet longlasting hold for your Lifespan beams and can be installed to support horizontal or vertical boards for more versatile outdoor
project designs. The concealed rafter brackets sit within the
hollow chambers of Lifespan beams and are fastened to Lifespan upright or vertical support beams with only one screw on each side to minimise the visibility of the fixing.
Visit your region-specific site to see what profiles, colours, and board sizes are available in your country.
